Industrial Symbiosis
![](https://www.insectschool.com/wp-content/uploads/1-11-e1683600115689-847x582-c-default.webp)

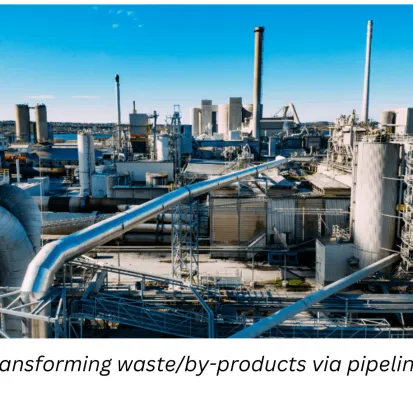

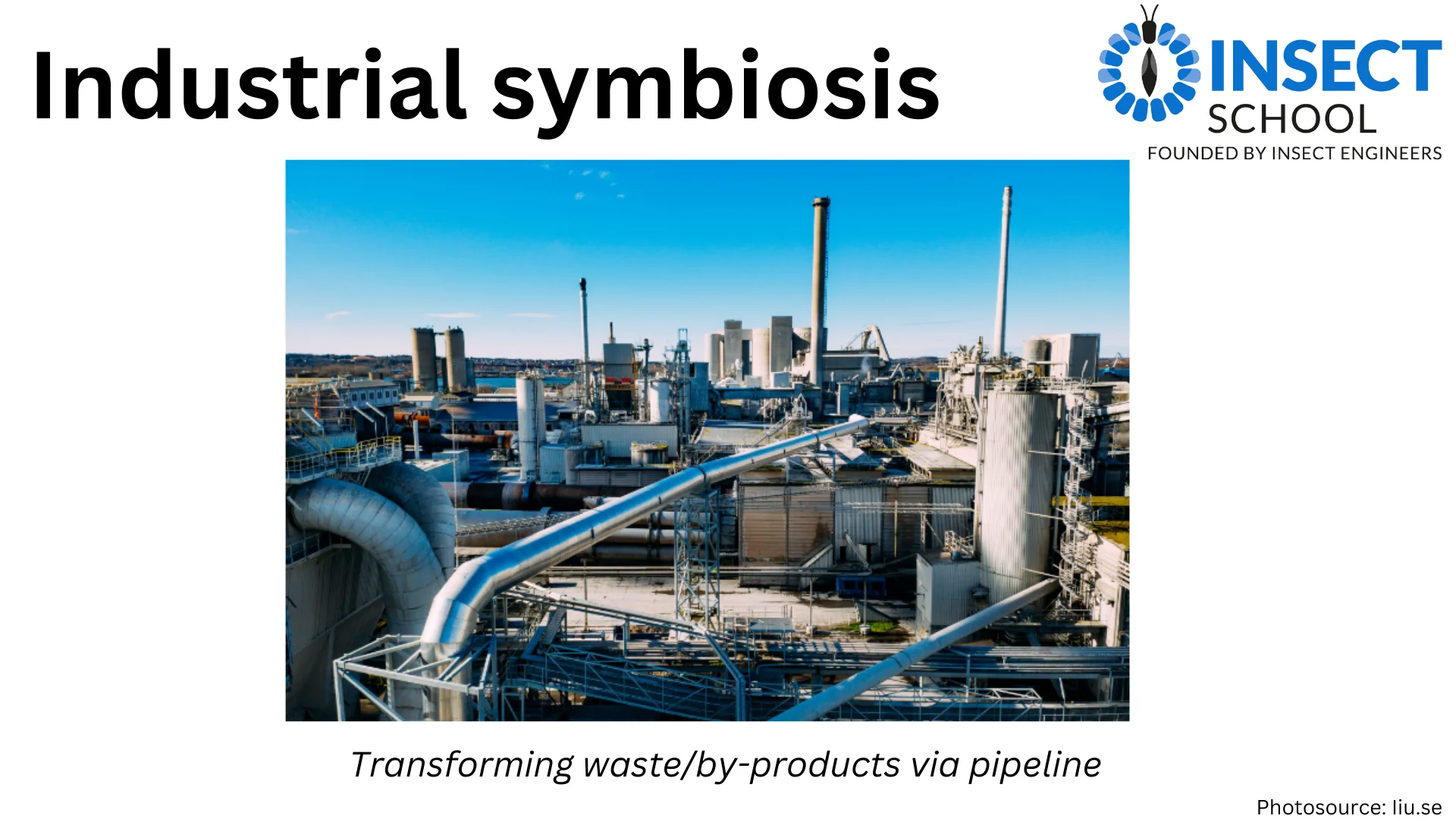

Industrial Symbiosis (co-location) in Insect Production for Energy Capture.
A French biotechnology company, Innovafeed , developed a unique and innovative symbiosis model in which BSF production is co-located with 2 industrial players:
1) a starch manufacturer that directly supplies local agricultural by-products (i.e., wheat bran and what starch slurry) to feed the larvae.
2) a wood biomass turbine, installed in a renewable energy power plant, which powers the insect production facility.

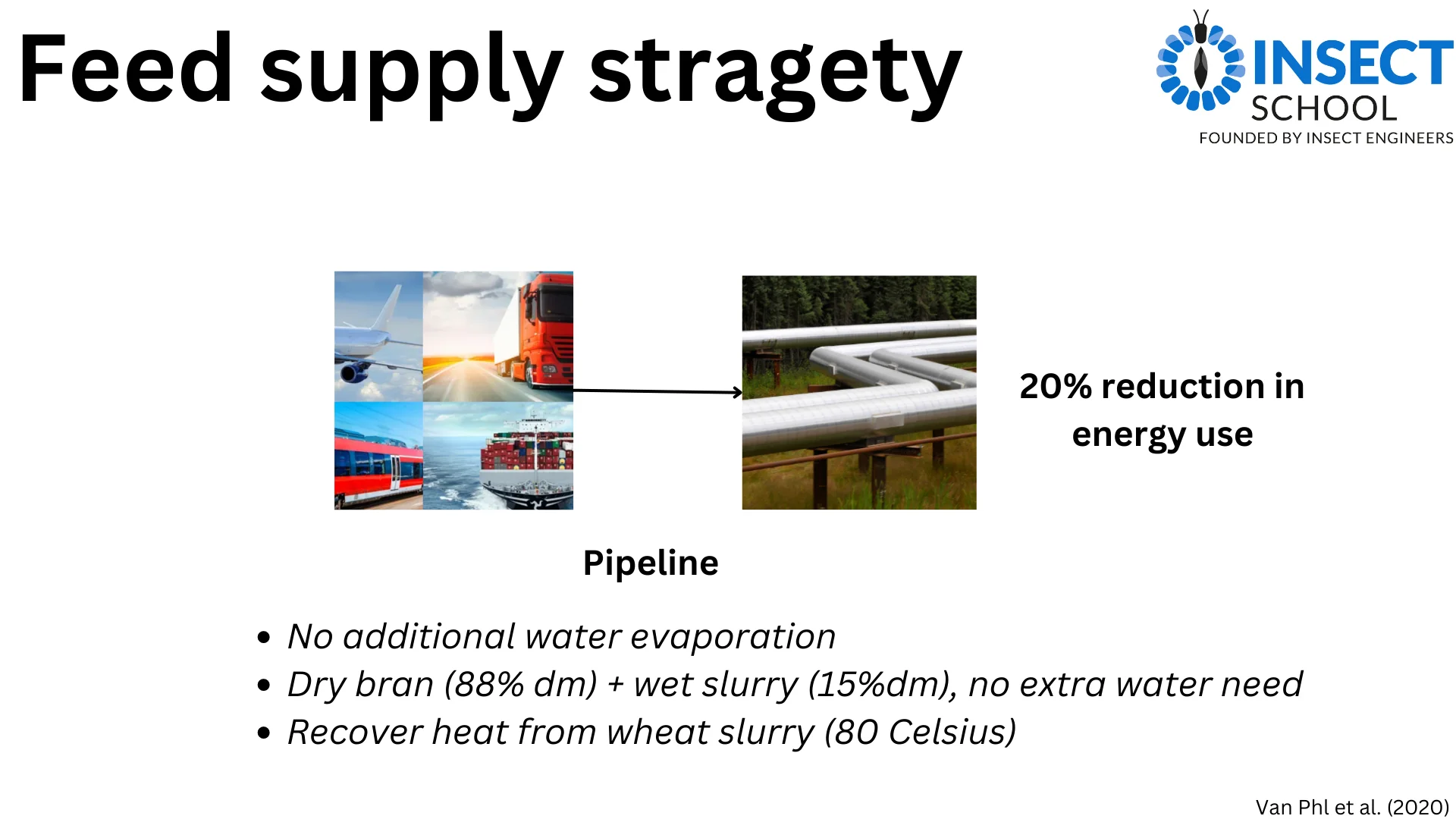

The wheat slurry has a temperature of 80 Celsius. Capturing the heat contributes to maintaining the appropriate temperature in the breeding zone thereby decreasing the overall energy needs of the insect production by 20%.

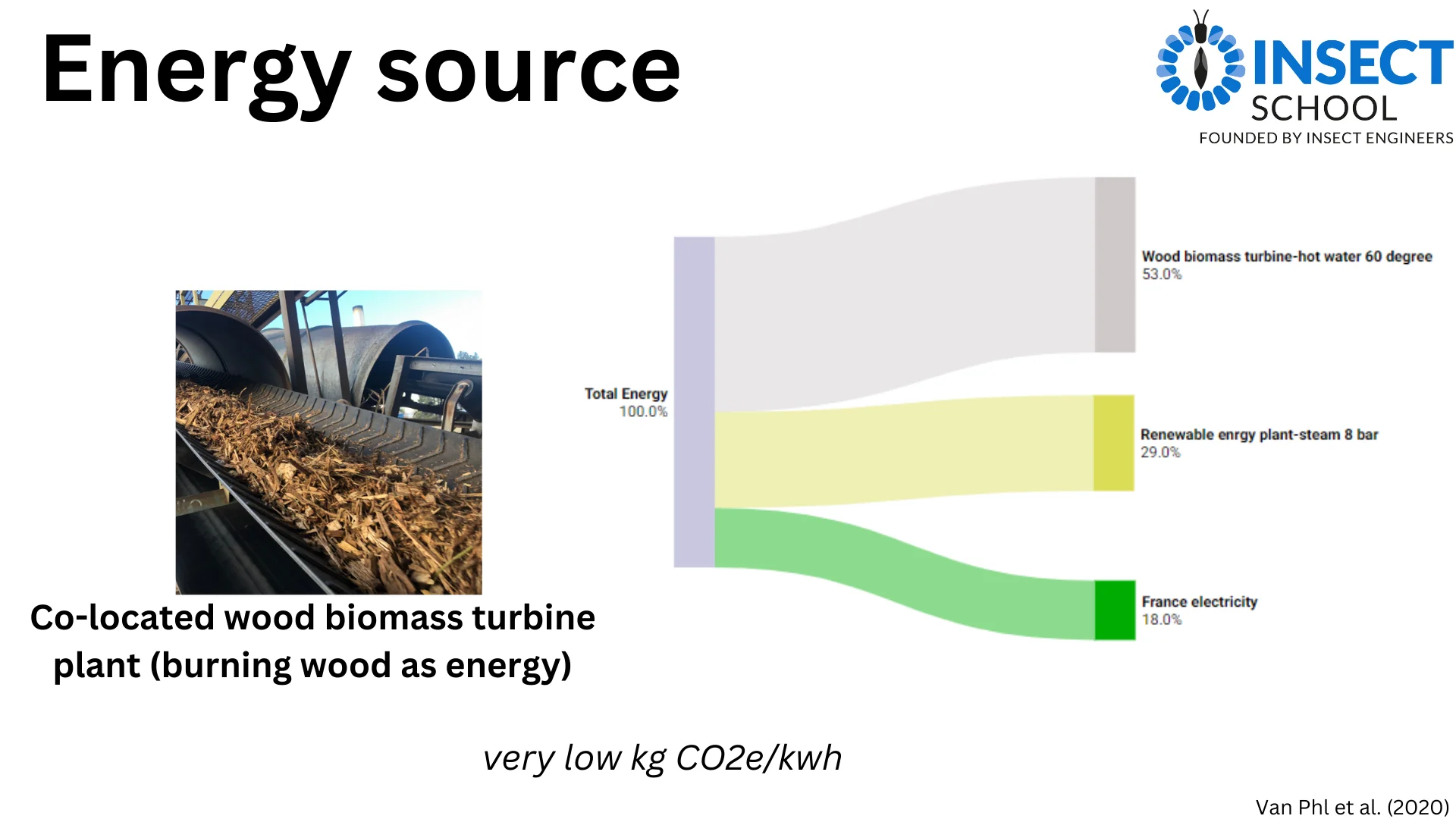

The wood biomass turbine has waste energy in the form of water at 60 Celsius; the calorific capacity of this heat is extracted at the insect production facility, corresponding to 53% of the production facility’s energy need. The rest 47% is sourced from renewable energy plant in form of steam (29%) and local electricity (18%).

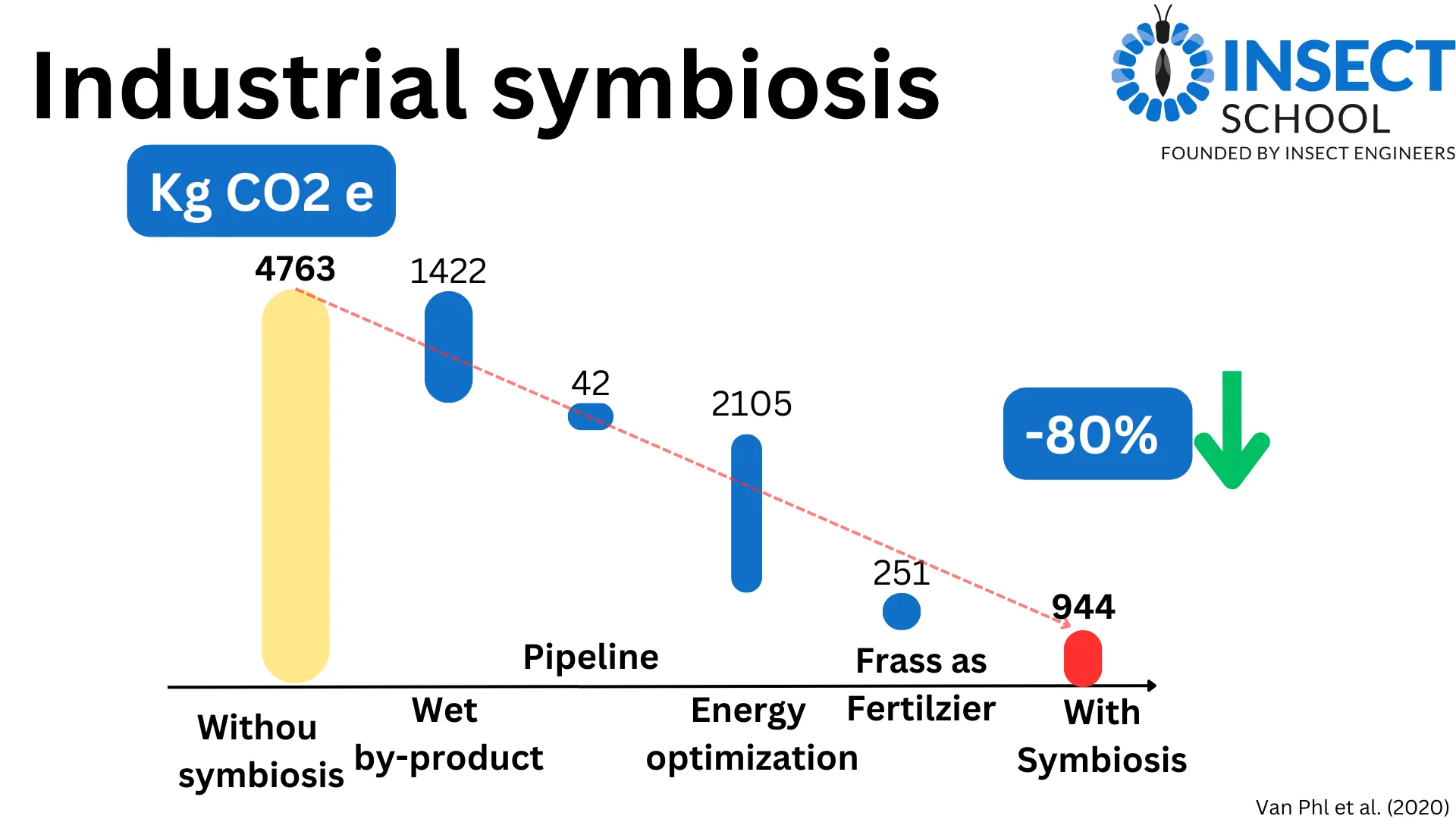

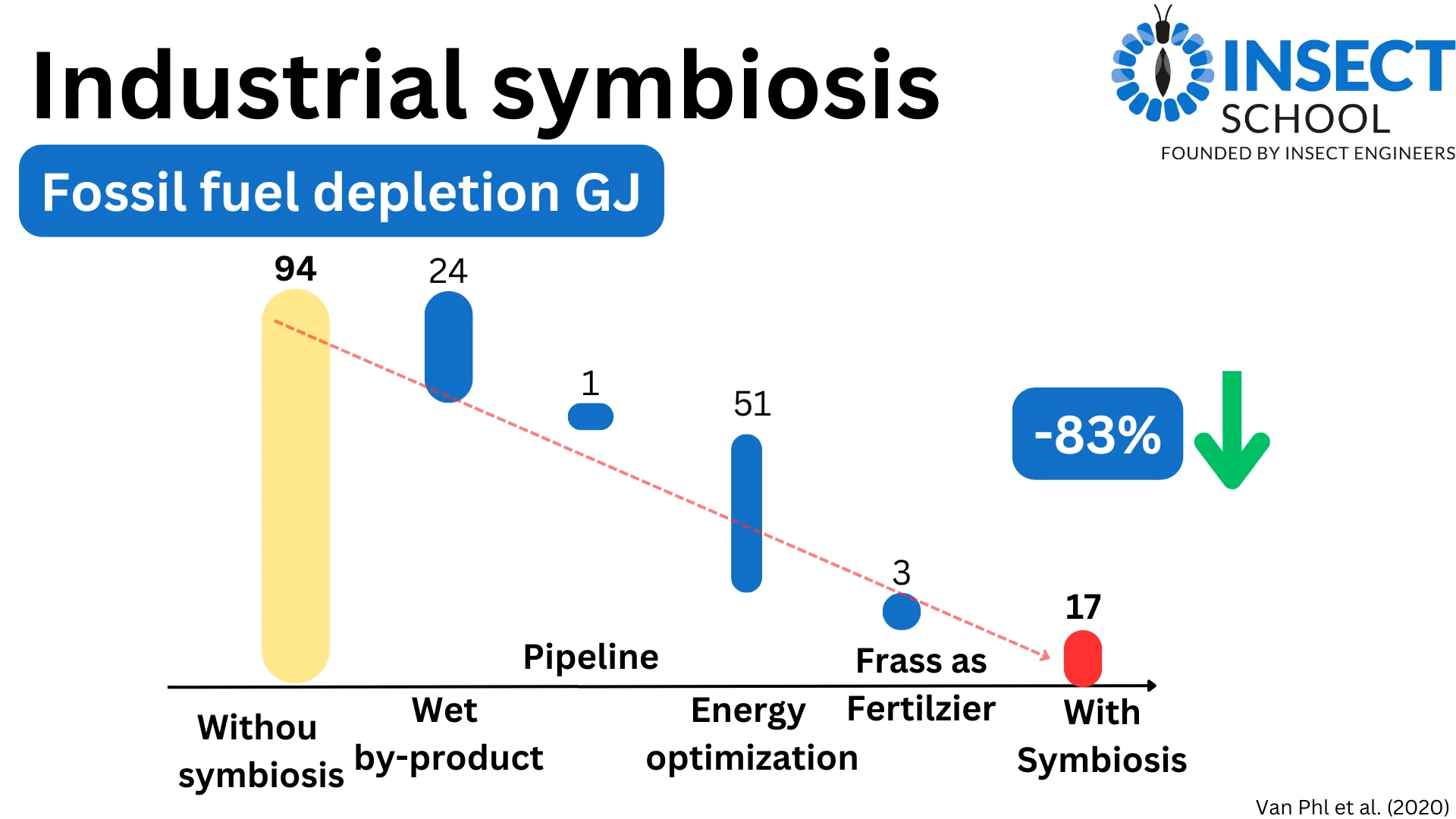

Such industrial symbiosis in BSF production introduces a meaningful change in terms of environmental footprint by reducing CO2 emissions by 80% and fossil resources depletion by 83% compared to the no-symbiosis model.
![1](https://www.insectschool.com/wp-content/uploads/1-10.png.webp)
![2](https://www.insectschool.com/wp-content/uploads/2-9.png.webp)
![3](https://www.insectschool.com/wp-content/uploads/3-9.png.webp)
![4](https://www.insectschool.com/wp-content/uploads/4-9.png.webp)
![5](https://www.insectschool.com/wp-content/uploads/5-8.png.webp)
![6](https://www.insectschool.com/wp-content/uploads/6-6.png.webp)
![7](https://www.insectschool.com/wp-content/uploads/7-4.png.webp)
![8](https://www.insectschool.com/wp-content/uploads/8-2.png.webp)
